UNIMAT PowerLine set

UNIMAT PowerLine set

Regular price €1.298,00
Regular price €1.298,00 Sale price €1.298,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:160300

UNIMAT PowerLine Set

The UNIMAT PowerLine is now also available as an independent set.

The modular set enables the following machine variants to be built:

  • circular saw
  • jigsaw
  • fly cutter
  • metal lathe
  • wood lathe
  • horizontal milling machine
  • vertical milling machine
  • grinding machine
  • hand sander
  • hand drill

These 10 different machines can be built from one set. The ideal addition to every workshop and the all-rounder for every application.

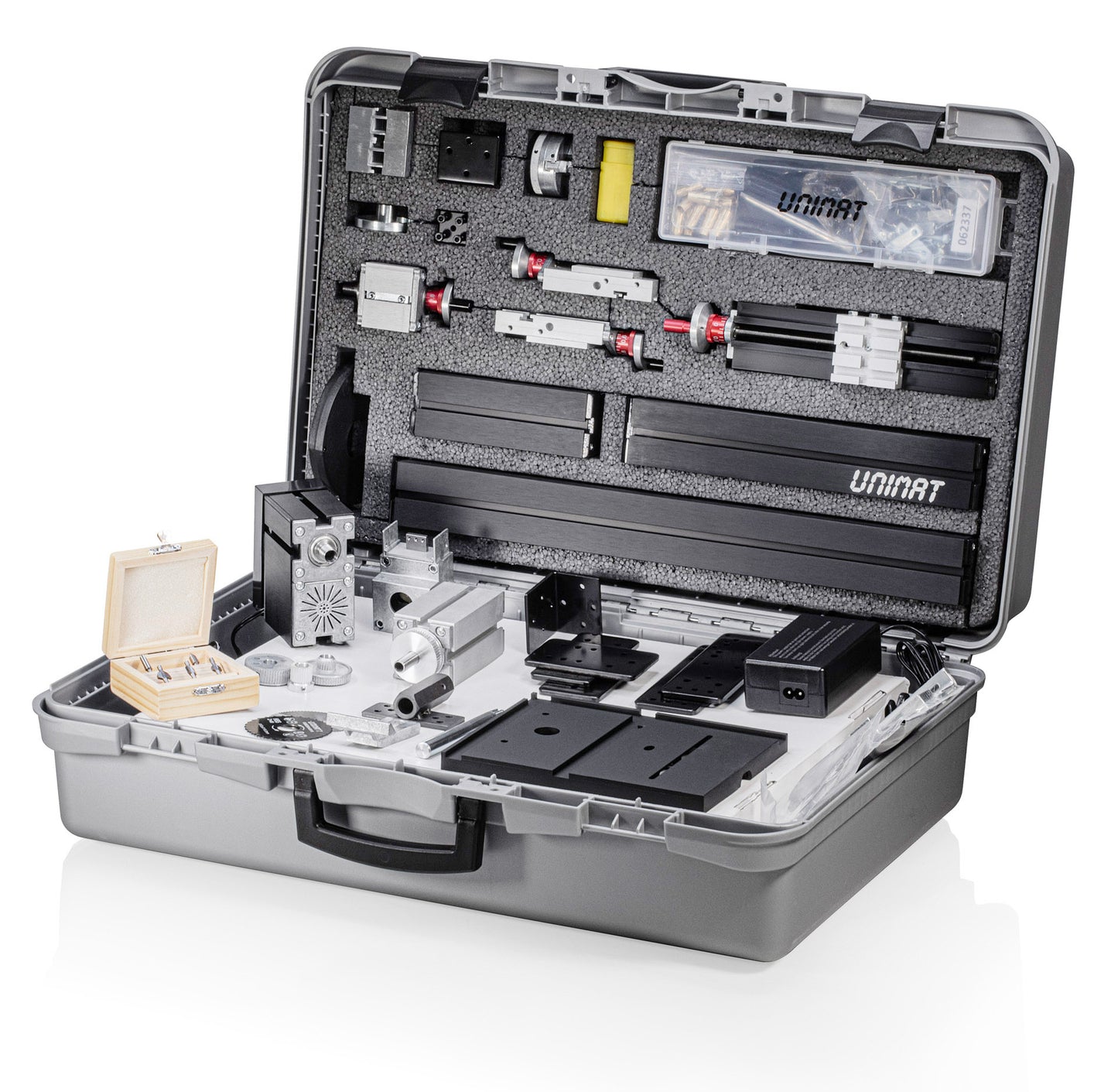

The set includes all the tools to work with the machines.

Included are: circular saw blades, jigsaw blades, turning tools, turning knives, milling cutters, drills, sandpaper and much more.

This enables the machines to be used immediately.

View full details

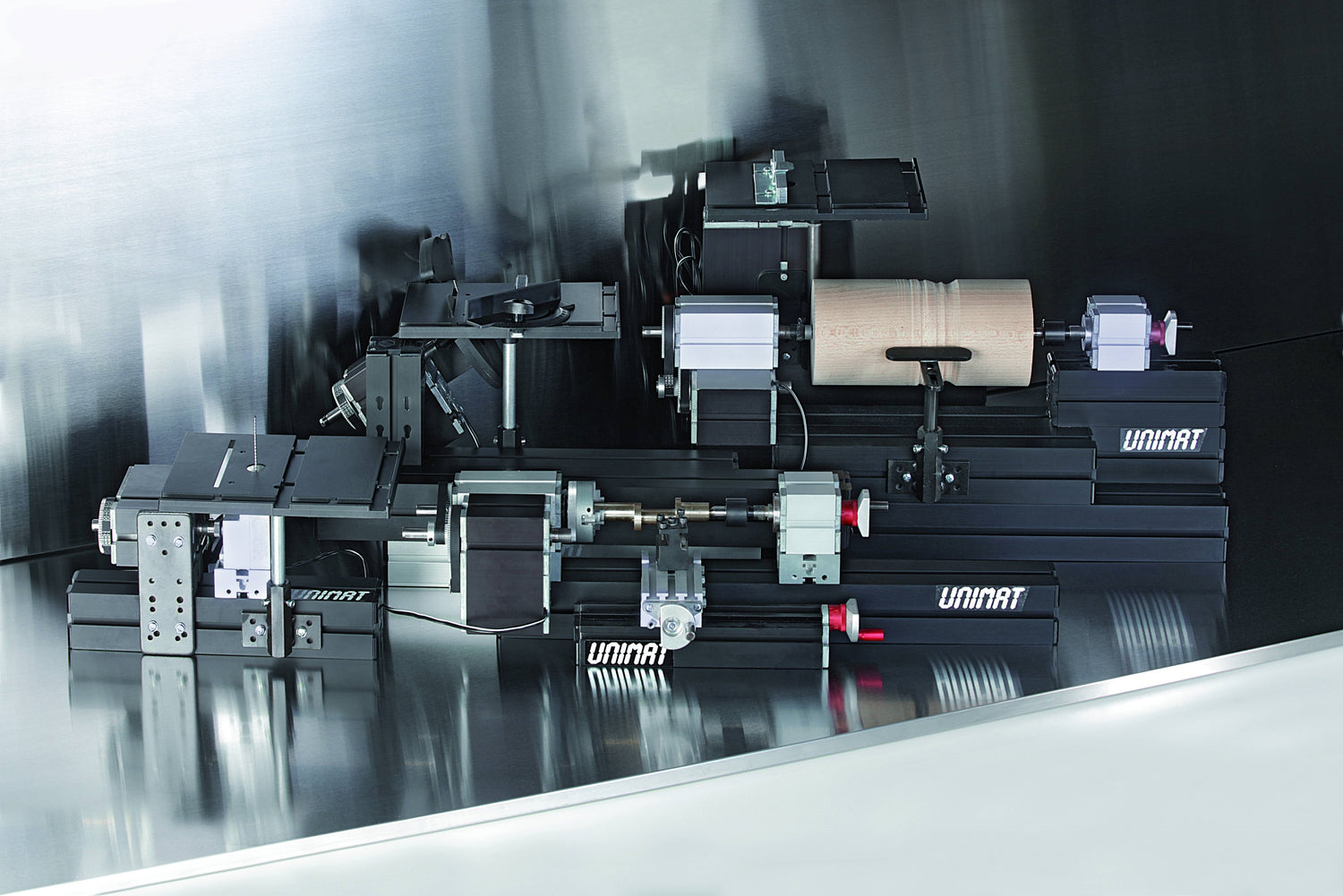

Power for all applications

The Powerline enables professional work and at the same time offers flexibility by setting up different machine variants.

  • Metal lathe

    For precise work up to 50 mm diameter. With an eccentrically set 4-jaw chuck, even crankshafts can be made from brass.

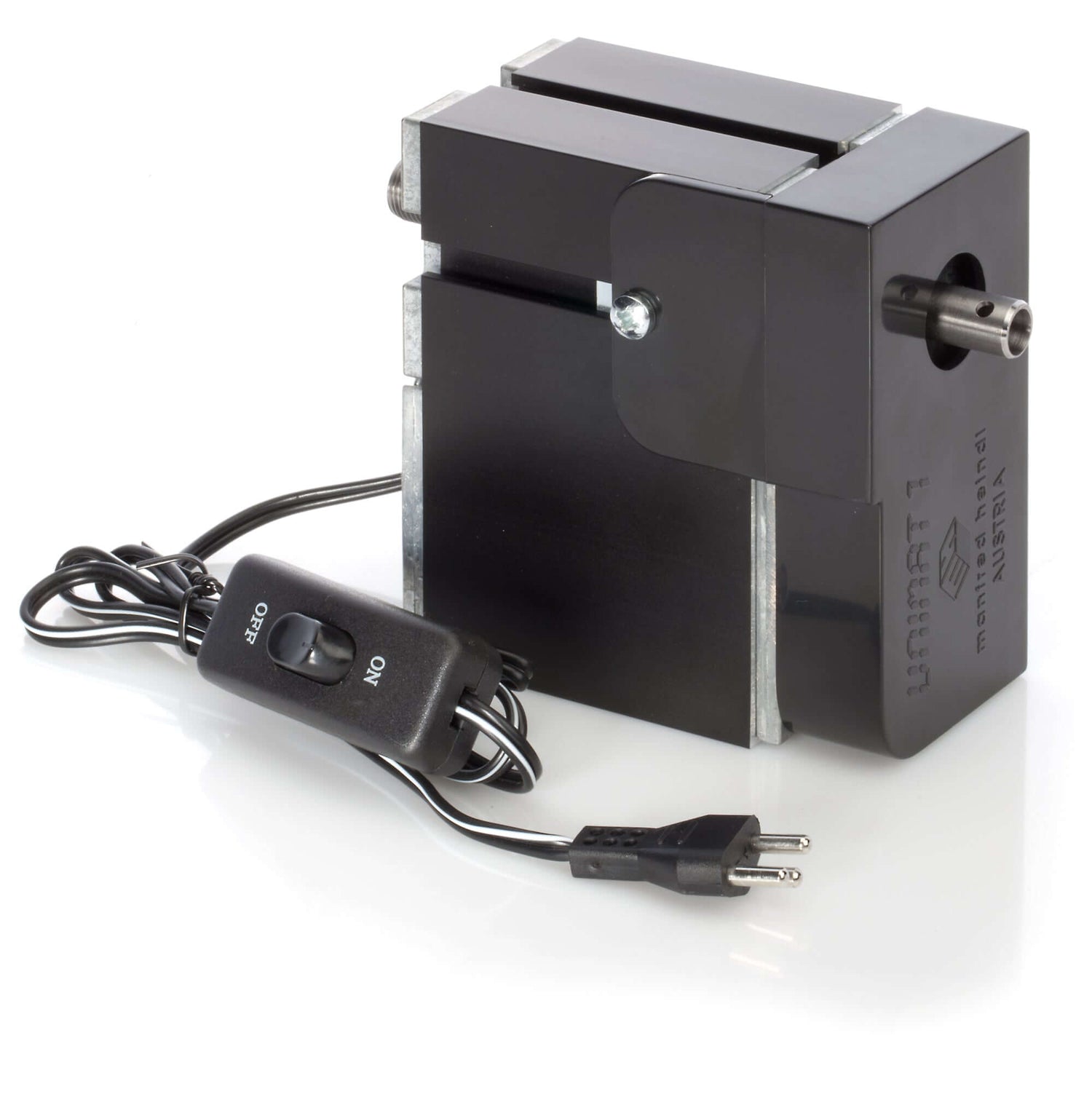

    The power reduction gear provides more power
    and lower speeds.

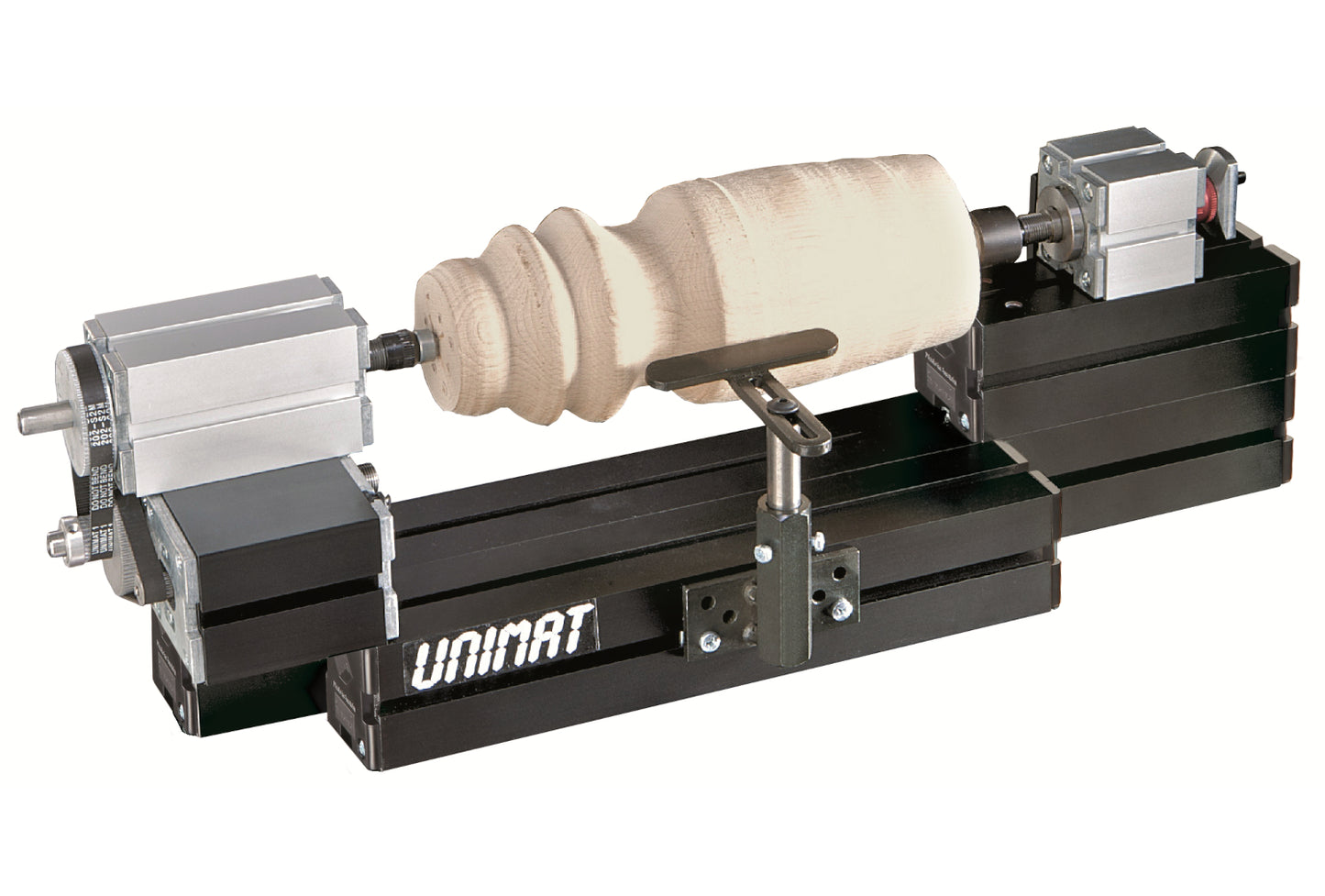

  • Wood lathe

    With the power motor and the reduction gear, even hardwoods with a diameter of up to 100 mm can be turned. The professional steel turning rest offers a safe and vibration-free support surface.

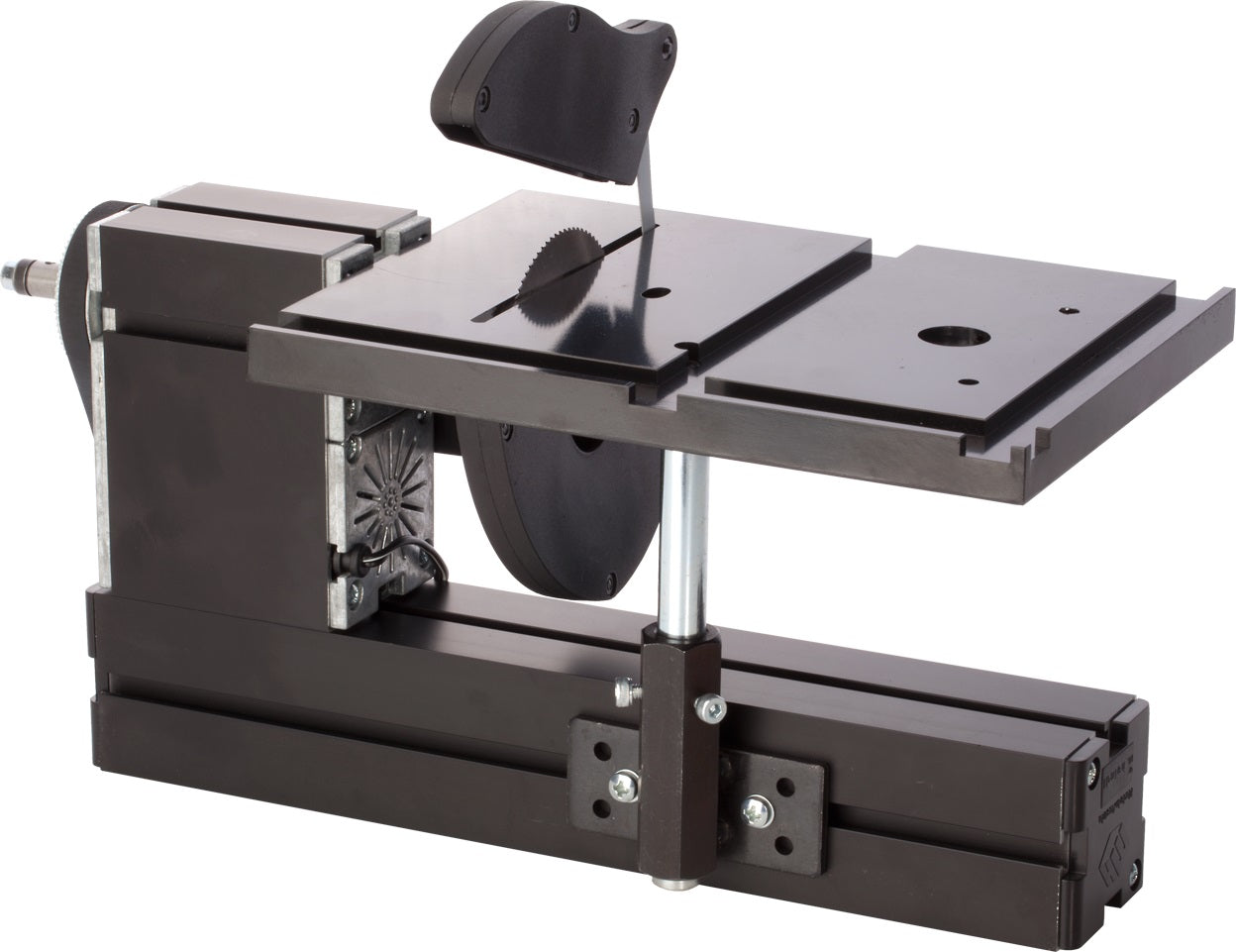

  • Circular saw

    Whether aluminum profiles, strips made of wood or plastics - the circular saw can be used to make clean cuts in different materials. The parts can be guided precisely using a longitudinal stop and miter square.

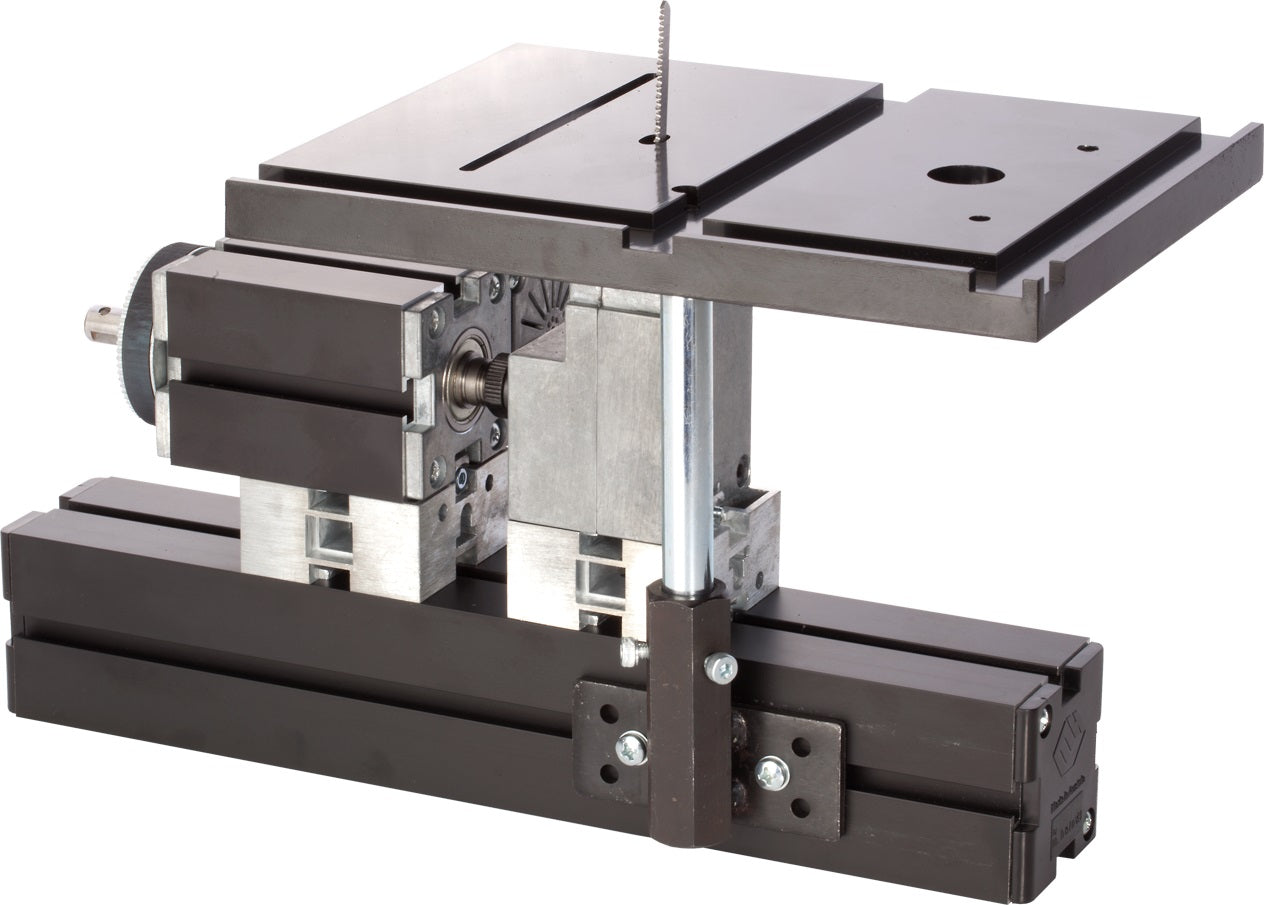

  • Jigsaw

    Ground steel tappets in CNC milled die-cast housing. Height-adjustable stroke - child-safe vibration (4mm) up to 8mm stroke for more cutting performance. Universal saw blade holder for standard jigsaw blades.

  • Horizontal mill

    By using the three carriages, workpieces can be processed at any level.
    Travel: X-axis 145 mm, Y and Z axes 32 mm each. Cutter holder: from 1 to 6 mm shaft thickness.

  • Vertical mill

    Two slides form the cross table with travel distances of 145 mm on the X and 32 mm on the Y axis. The third slide makes the Z axis (32 mm). The handwheels can be used to precisely drill holes with a specific depth and position. Collet with a shaft thickness of 1 to 6 mm.

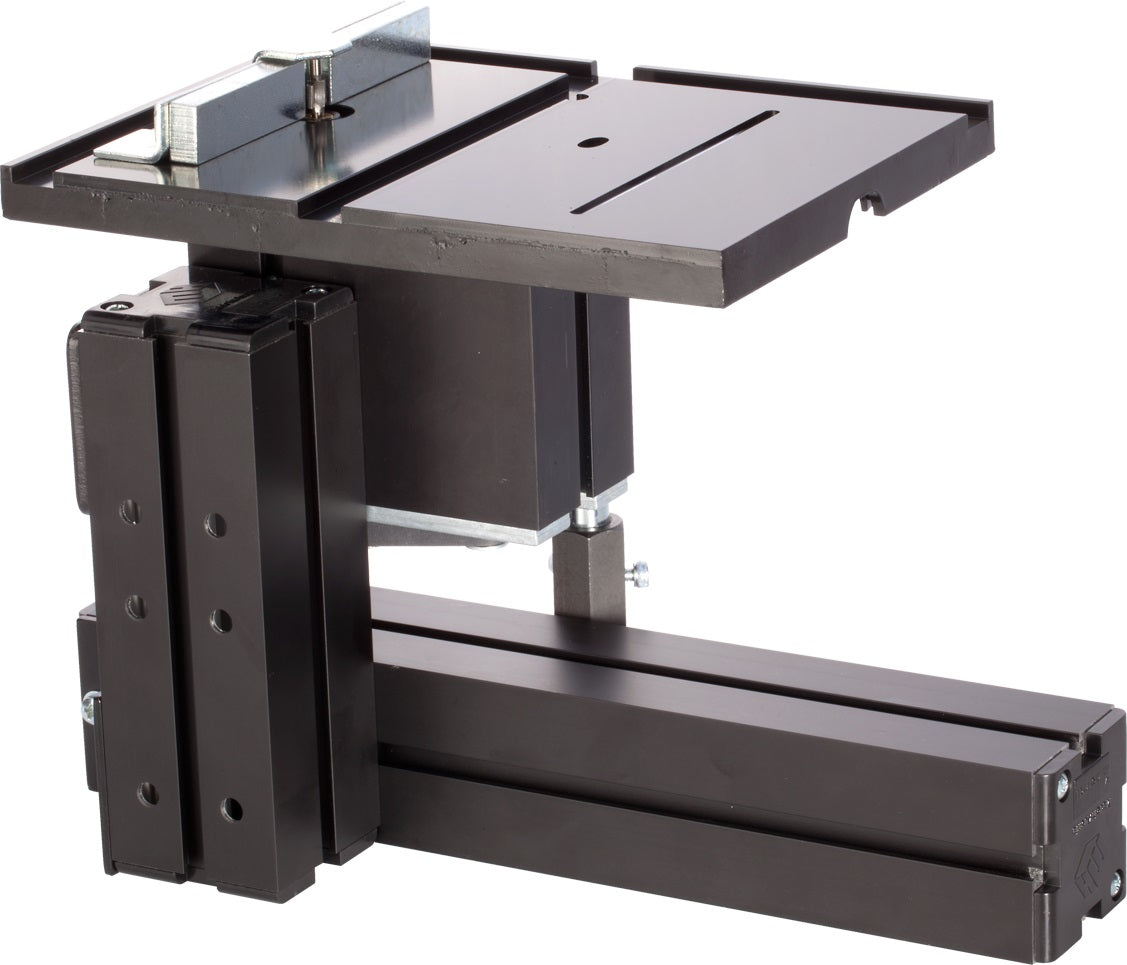

  • Fly cutter

    For leveling metals, creating fits and steps, or using the dividing head to create 4, 6, 8 edges.

  • Sanding machine

    Safe grinding, ideal for giving your own workpieces the finishing touches or simply re-sharpening your own tools yourself.

  • Hand sander

    The hand grinder enables grinding work even on large workpieces. Ideal for hard-to-reach places.

  • Hand drill

    The drill allows you to drill holes in wood.
    For drills/burins from 1 to 6 mm. Ideal for drilling in hard-to-reach places or for engraving.

Modular system for all applications

Our PowerLine system offers the ideal solution, especially for users who need a large machine park in a small area. The simple conversion between the 10 machine variants offers maximum flexibility.

Quality from Austria

We have been producing machines in our factory in Austria since 1982. As a family business, quality and customer satisfaction are of great importance to us. Our PowerLine devices are extensively tested to meet the highest demands.
